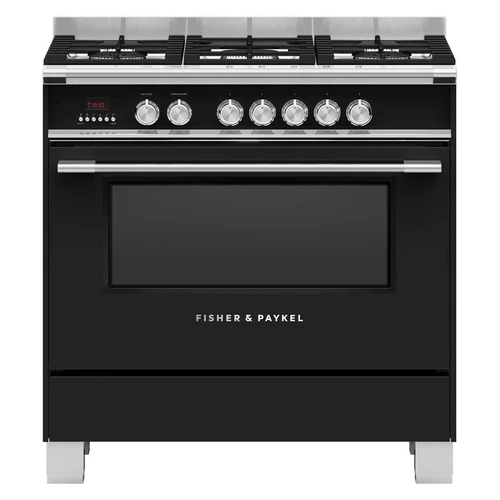

FISHER & PAYKEL OR90SCG4B1 90CM Freestanding Dual Fuel Oven

Specification

• Dimensions
• Depth 600mm
• Height 898 - 946mm
• Width 897mm

Warranty

• Warranty 2 years

Cooktop Features

• Dishwasher safe trivets
• Gas Cooktop- Sealed range top
• Hob rail
• Hob rear trim 60mm
• LPG/Natural gas compatible

Oven Features

• AeroTech™ technology
• Automatic rapid pre-heat
• Electronic oven control
• Full-extension telescopic sliding shelves 1 set (part 578744)
• Internal light 4 x 25W halogen (2 side, 2 top)
• Soft open/close door
• Storage drawer
• True Convection
• Twin cavity fans

Installation Cutout Dimensions

• Depth 600mm
• Width 900mm

Cooktop Performance

• Dual wok burner inner / outer (LPG) 2.4 - 16.2MJ/h
• Dual wok burner inner / outer (natural gas) 2.4 - 16.2MJ/h
• Max burner power 16.2MJ/h
• Number of burners 5
• Semi-rapid burner (LPG) x2 2.5 - 6.5MJ/h
• Semi-rapid burner (natural gas) x2 2.5 - 6.5MJ/h
• Total cooktop power 58MJ/h
• Triple ring wok burner (LPG) x2 6.5 - 14.4MJ/h
• Triple ring wok burner (natural gas) x2 6.5 - 14.4MJ/h

Oven Performance

• CoolTouch door Quadruple glazed
• Grill 4500W
• Shelf positions 6
• Total oven capacity 140L
• Usable capacity 121L

Oven Functions

• Bake
• Classic Bake
• Fan Bake
• Fan forced
• Fan grill
• Grill
• Number of Functions 9
• Pastry Bake with Pizza mode
• Rapid proof
• Roast

Cleaning

• Acid resistant graphite enamel
• Dishwasher safe trivets
• Drop down grill element
• Removable oven door/inner glass
• Removable oven door/s
• Removable shelf runners

Safety

• Advanced cooling system
• Anti-tilt bracket
• Balanced oven door
• CoolTouch door
• Flame failure system
• Full-extension telescopic sliding shelves
• Non-tip shelves
• Spill containment 2.6L

Controls

• Audio feedback
• Automatic cooking/minute timer
• Automatic pre-set temperatures
• Bright chromed, cast zinc dials with illuminated halos
• Celsius/Fahrenheit temperature
• Electronic clock
• Interior light
• Laser-etched graphics
• Precise electronic temperature control
• Sabbath mode
• Turned stainless steel clock buttons

Power Requirements

• AMP draw 22A
• Supply frequency 50Hz
• Supply voltage 220 - 240V

Accessories

• Chromed shelf runners 1 set
• Flat wire shelf
• Full-extension sliding shelves 1 set (part 578744)
• Grill rack
• Kick strip, stainless steel (optional) Part 81661
• Roasting Dish
• Small pot support 1 (part 533981 cast)
• Step down wire shelf
• Wok stand 1 (part 534678)

Style And Series

• Product Style Classic
